EVER-FLO SOFFIT INTAKE VENT

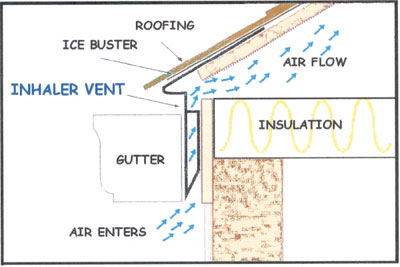

Combines the drip edge & the soffit Intake
vent. Ideal for homes with little or no overhang.
* 7 1/2 Square inches of vent of venting per L.F.
* Install on 3/12 to 12/12 roof pitch.
* Each length has an integrated overlap for fast secure
* Install with or without gutters.
1. Cut back
roof deck or fascia to allow a one inch air space.
2. Place The
Inhaler over opening, overlap in slot provided, nail in
optional end plugs at ends to close off.
Water Barrier underlayment and roof shingle in normal
